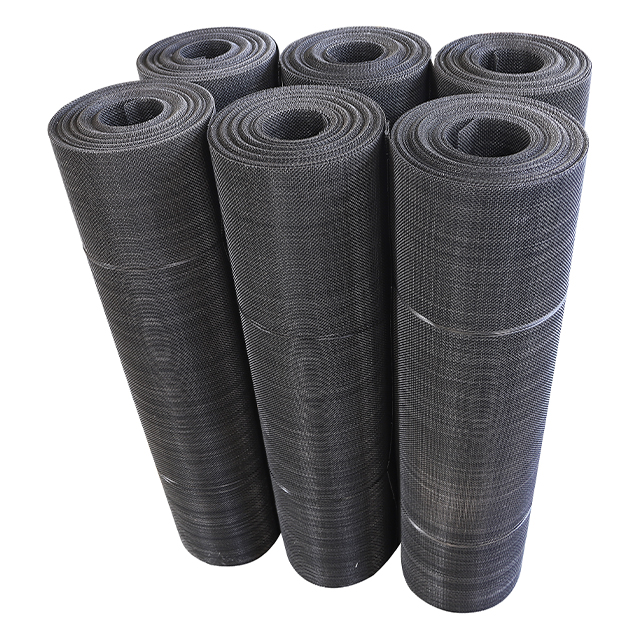

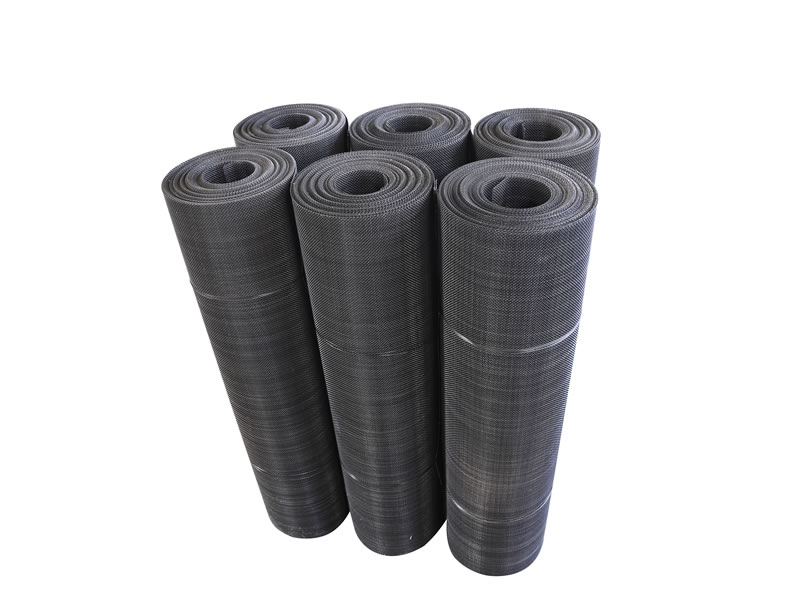

Material:Q195 ,Q235 ,C1006 ect.
Weaving type:plain weave,twill weave ,herring bone
Application: Extrusion in the plastic and rubber industries,petrochemicals industries filtration and separation.
![]() | ![]() |
![]() | ![]() |
Material:Q195 ,Q235 ,C1006 ect.
Weaving type:plain weave,twill weave ,herring bone
Application: Extrusion in the plastic and rubber industries,petrochemicals industries filtration and separation.
![]() | ![]() |
![]() | ![]() |

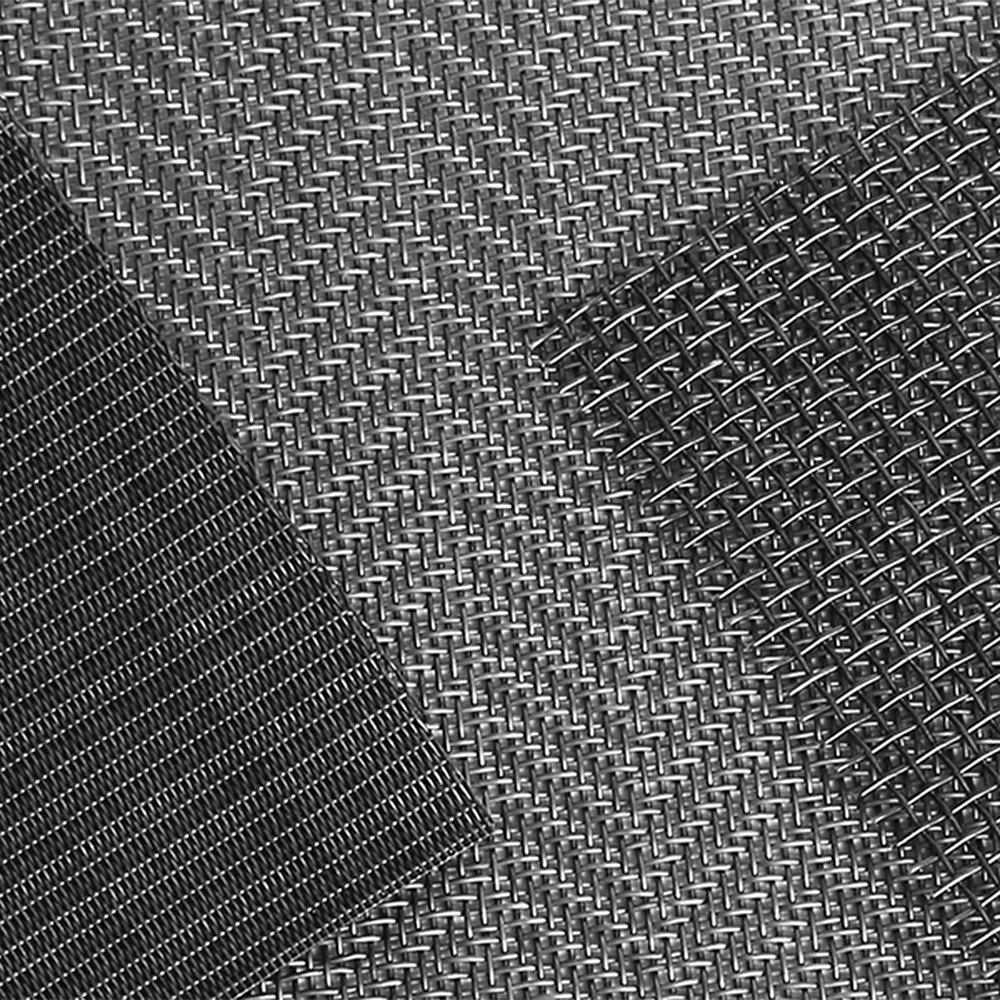

Plain-weave Twill-weave
Plain-weave Twill-weave

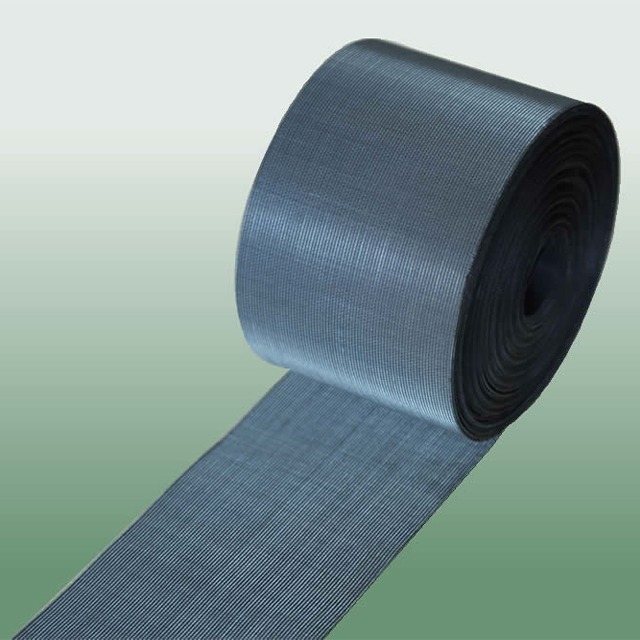

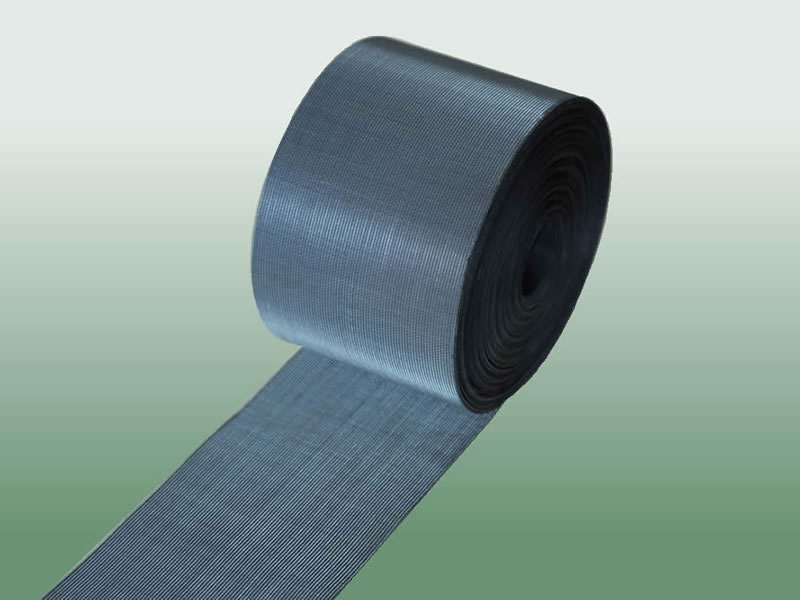

LOW CARBON WIRE MESH: PLAIN DUTCH WEAVE | |
MESH(INCH) | WIRE DIA.(MM) |
12×64 | 0.60×0.40 |
14×88 | 0.50×0.32 |
24×110 | 0.35×0.25 |
30×150 | 0.23×0.18 |
40×200 | 0.18×0.13 |
AVAILABLE IN WIDTH: 0.50M-1.30M |
LOW CARBON WIRE MESH: PLAIN DUTCH WEAVE | |
MESH(INCH) | WIRE DIA.(MM) |
12×64 | 0.60×0.40 |
14×88 | 0.50×0.32 |
24×110 | 0.35×0.25 |
30×150 | 0.23×0.18 |
40×200 | 0.18×0.13 |
AVAILABLE IN WIDTH: 0.50M-1.30M |

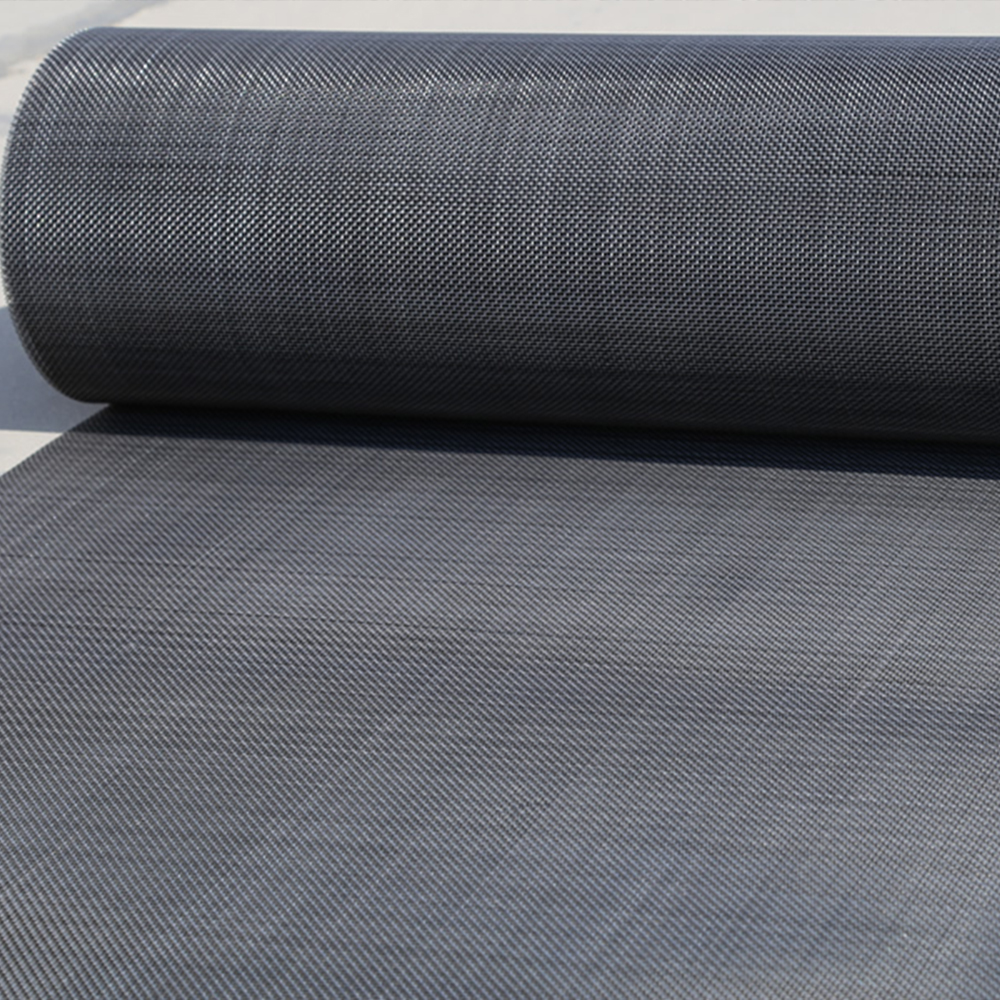

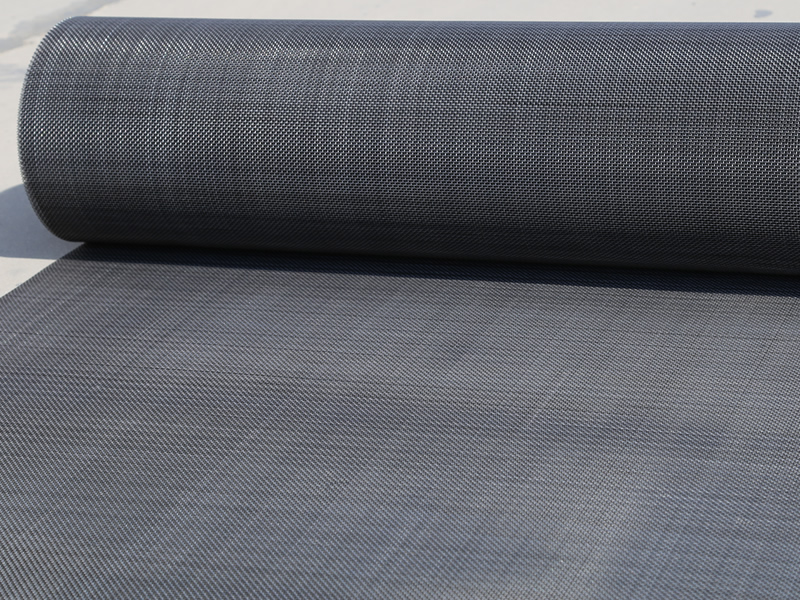

LOW CARBON STEEL WIRE MESH: PLAIN WEAVE | |||
MESH(INCH) | WIRE DIA.(MM) | APERTURE(MM) | OPENING RATE |
8 | 0.710 | 2.465 | 60% |
10 | 0.630 | 1.910 | 57% |
12 | 0.600 | 1.516 | 51% |
14 | 0.500 | 1.314 | 52% |
16 | 0.450 | 1.137 | 51% |
18 | 0.400 | 1.011 | 51% |
20 | 0.400 | 0.870 | 47% |
30 | 0.300 | 0.540 | 41% |
40 | 0.250 | 0.390 | 37% |
50 | 0.200 | 0.308 | 37% |
60 | 0.160 | 0.263 | 39% |
80×70 | 0.135 | 0.190/0.230 | |
AVAILABLE IN WIDTH:0.50M-1.30M |
LOW CARBON WIRE MESH: PLAIN DUTCH WEAVE | |
MESH(INCH) | WIRE DIA.(MM) |
12×64 | 0.60×0.40 |
14×88 | 0.50×0.32 |
24×110 | 0.35×0.25 |
30×150 | 0.23×0.18 |
40×200 | 0.18×0.13 |
AVAILABLE IN WIDTH: 0.50M-1.30M |
LOW CARBON WIRE MESH: PLAIN DUTCH WEAVE | |
MESH(INCH) | WIRE DIA.(MM) |
12×64 | 0.60×0.40 |
14×88 | 0.50×0.32 |
24×110 | 0.35×0.25 |
30×150 | 0.23×0.18 |
40×200 | 0.18×0.13 |
AVAILABLE IN WIDTH: 0.50M-1.30M |
LOW CARBON STEEL WIRE MESH: PLAIN WEAVE | |||
MESH(INCH) | WIRE DIA.(MM) | APERTURE(MM) | OPENING RATE |
8 | 0.710 | 2.465 | 60% |
10 | 0.630 | 1.910 | 57% |
12 | 0.600 | 1.516 | 51% |
14 | 0.500 | 1.314 | 52% |
16 | 0.450 | 1.137 | 51% |
18 | 0.400 | 1.011 | 51% |
20 | 0.400 | 0.870 | 47% |
30 | 0.300 | 0.540 | 41% |
40 | 0.250 | 0.390 | 37% |
50 | 0.200 | 0.308 | 37% |
60 | 0.160 | 0.263 | 39% |
80×70 | 0.135 | 0.190/0.230 | |
AVAILABLE IN WIDTH:0.50M-1.30M |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
