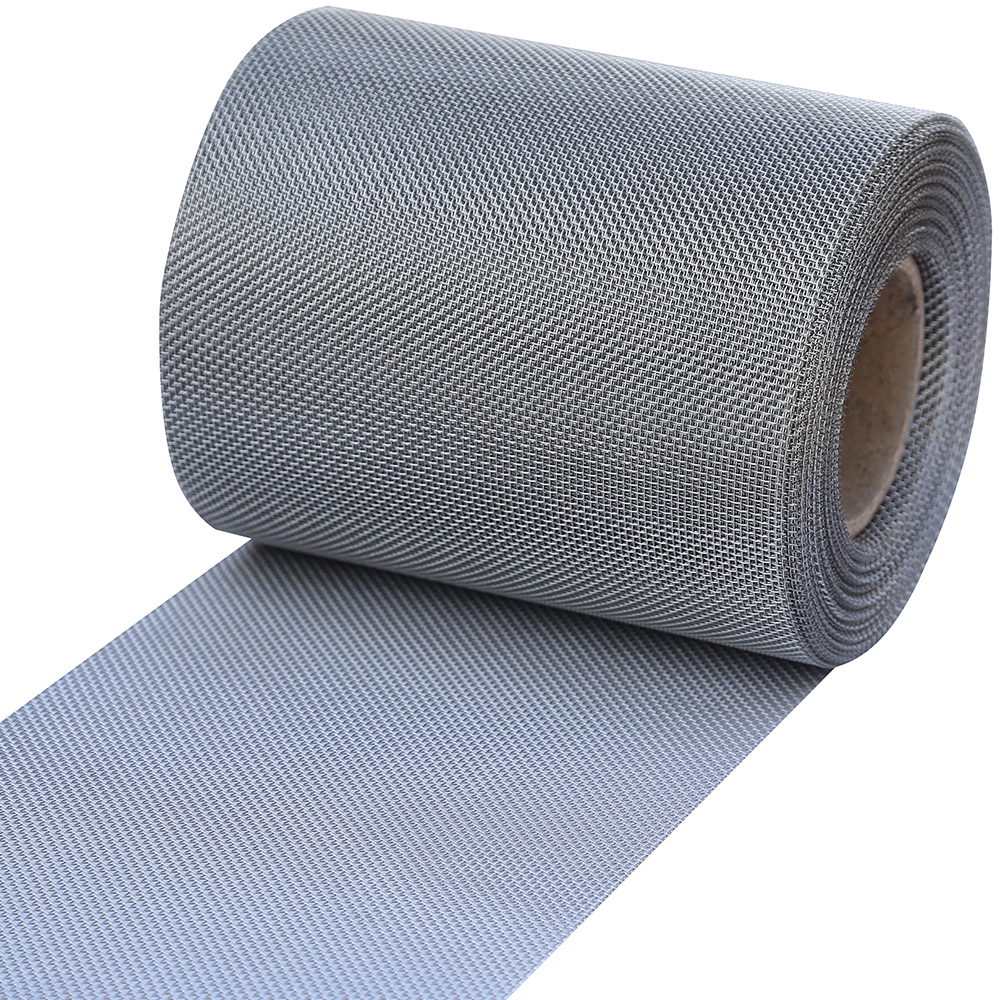

Material: SUS/AISI 304 304L 316 316L 904 310 310S 430 etc.

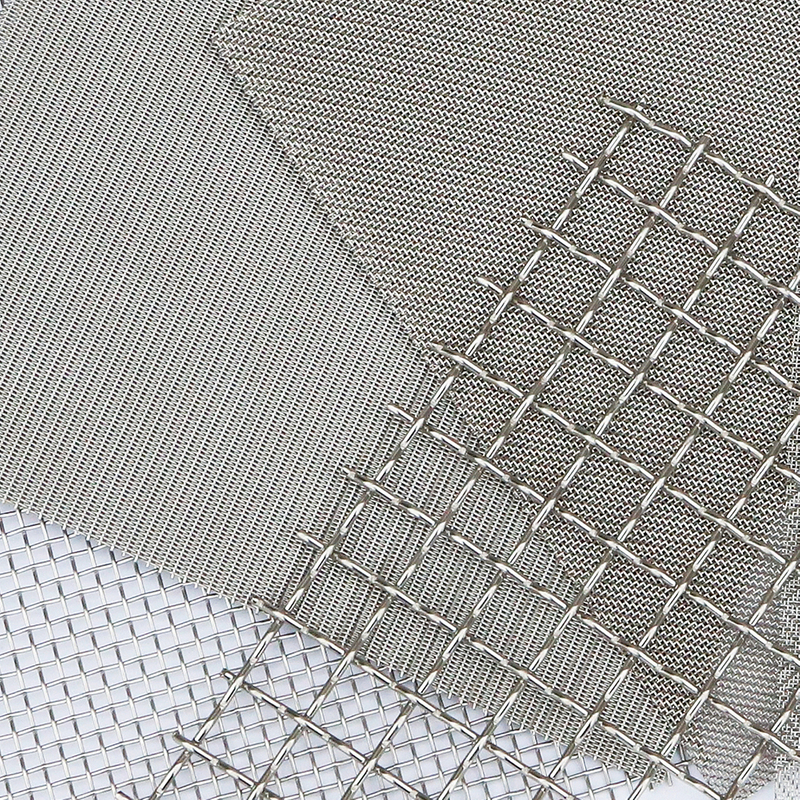

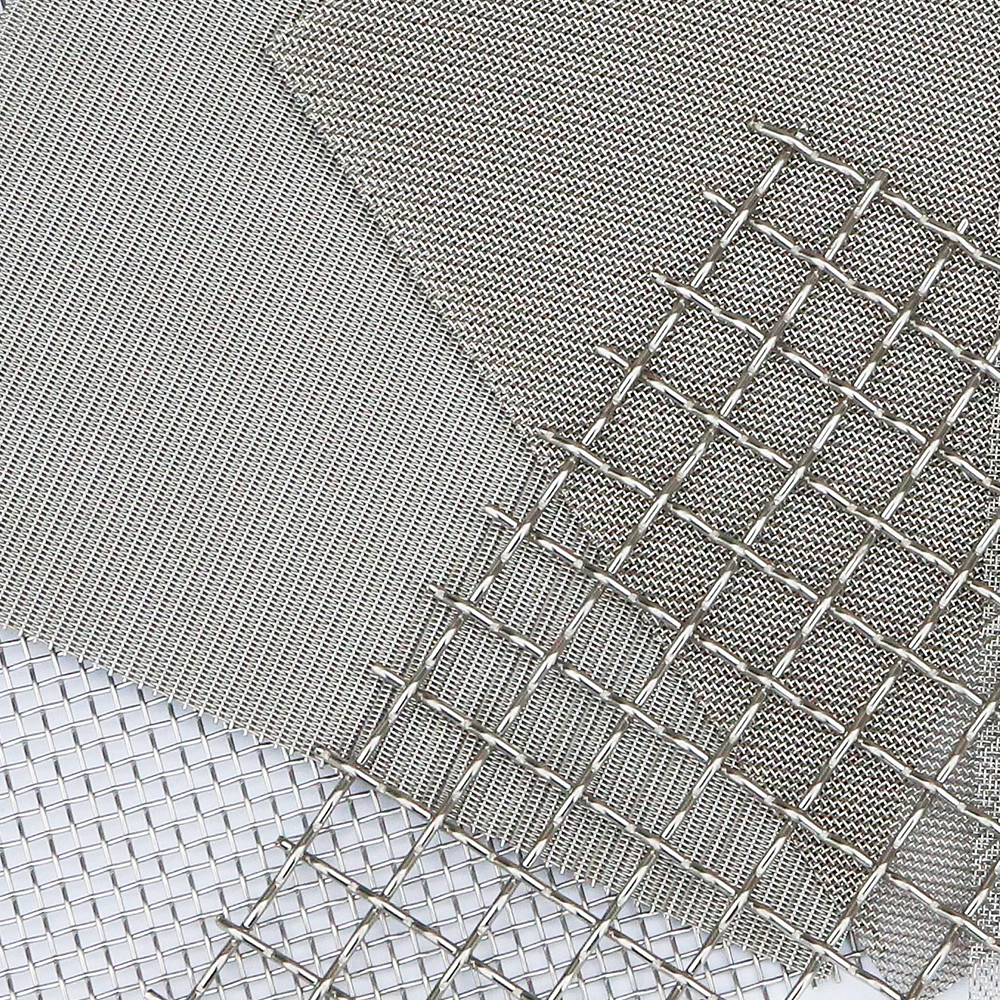

Weaving type: Plain Weave,Twill weave,Plain Dutch Weave,Twill Dutch Weave,Twill Reverse Duth Weave,Crimped.
Different weaving methods are suitable for different occasions.plain weave stainless steel wire mesh with good filtering performance,suitable for filtering liquid and gas.twill weave stainless steel wire mesh with high strength.suitable for sieving particles and solids.Dutch weave stainless steel wire mesh with high filtering accuracy,suitable for precision filtration.
Characteristic:acid-resistance,alkali-resistance,high-temperature resistance,wear resistance.
Application: Sieving and filering under acidic and alkaline conditions,in the petroleum industry,to be used as a mud mesh,in the chemical and chemical fiber industry,it is used as a sieving mesh .in galvanized industry,it play a role of acid washing mesh.In addtion,it is also be applied in food industry,mining industry,medicine industry,industry,aerospace industry,automotive industry 。
Material: SUS/AISI 304 304L 316 316L 904 310 310S 430 etc.
Weaving type: Plain Weave,Twill weave,Plain Dutch Weave,Twill Dutch Weave,Twill Reverse Duth Weave,Crimped.
Different weaving methods are suitable for different occasions.plain weave stainless steel wire mesh with good filtering performance,suitable for filtering liquid and gas.twill weave stainless steel wire mesh with high strength.suitable for sieving particles and solids.Dutch weave stainless steel wire mesh with high filtering accuracy,suitable for precision filtration.
Characteristic:acid-resistance,alkali-resistance,high-temperature resistance,wear resistance.
Application: Sieving and filering under acidic and alkaline conditions,in the petroleum industry,to be used as a mud mesh,in the chemical and chemical fiber industry,it is used as a sieving mesh .in galvanized industry,it play a role of acid washing mesh.In addtion,it is also be applied in food industry,mining industry,medicine industry,industry,aerospace industry,automotive industry 。
Plain-weave Twill-weave
Plain-Dutch-weave Twill-Reverse-Dutch-weave
Plain-Reverse-Dutch-weave
Plain-weave Twill-weave
Plain-Dutch-weave Twill-Reverse-Dutch-weave
Plain-Reverse-Dutch-weave
PLAIN WEAVE | ||||
MESH(INCH) | WIRE DIA.(MM) | APERTURE/OPENING (MM) | MATERIAL(AISI) | OPEN AREA |
2 | 1.800 | 10.900 | 304/316 | 74% |
2 | 1.500 | 11.200 | 304/316 | 78% |
3 | 1.500 | 6.960 | 304/316 | 68% |
3 | 1.200 | 7.260 | 304/316 | 74% |
4 | 1.200 | 5.150 | 304/316 | 66% |
4 | 1.000 | 5.350 | 304/316 | 71% |
5 | 1.000 | 4.080 | 304/316 | 65% |
5 | 0.900 | 4.180 | 304/316 | 68% |
6 | 1.000 | 3.233 | 304/316 | 58% |
6 | 0.800 | 3.433 | 304/316 | 66% |
7 | 0.800 | 2.828 | 304/316 | 61% |
7 | 0.700 | 2.928 | 304/316 | 65% |
8 | 0.800 | 2.375 | 304/316 | 56% |
8 | 0.600 | 2.575 | 304/316 | 66% |
10 | 0.600 | 1.940 | 304/316 | 58% |
10 | 0.550 | 1.990 | 304/316 | 61% |
12 | 0.600 | 1.516 | 304/316 | 51% |
12 | 0.550 | 1.566 | 304/316 | 55% |
12 | 0.500 | 1.616 | 304/316 | 58% |
14 | 0.550 | 1.262 | 304/316 | 49% |
14 | 0.500 | 1.312 | 304/316 | 52% |
14 | 0.450 | 1.362 | 304/316 | 56% |
16 | 0.500 | 1.088 | 304/316 | 47% |
16 | 0.450 | 1.138 | 304/316 | 51% |
18 | 0.500 | 0.910 | 304/316 | 42% |
18 | 0.450 | 0.960 | 304/316 | 46% |
18 | 0.400 | 1.010 | 304/316 | 51% |
20 | 0.500 | 0.770 | 304/316 | 37% |
20 | 0.450 | 0.820 | 304/316 | 42% |
20 | 0.400 | 0.870 | 304/316 | 47% |
30 | 0.350 | 0.496 | 304/316 | 34% |
30 | 0.300 | 0.548 | 304/316 | 42% |
30 | 0.250 | 0.596 | 304/316 | 50% |
35 | 0.300 | 0.425 | 304/316 | 34% |
35 | 0.250 | 0.475 | 304/316 | 43% |
35 | 0.230 | 0.495 | 304/316 | 47% |
40 | 0.250 | 0.385 | 304/316 | 37% |
40 | 0.200 | 0.435 | 304/316 | 47% |
40 | 0.180 | 0.455 | 304/316 | 51% |
50 | 0.220 | 0.288 | 304/316 | 32% |
50 | 0.200 | 0.308 | 304/316 | 37% |
50 | 0.180 | 0.328 | 304/316 | 42% |
60 | 0.190 | 0.233 | 304/316 | 30% |
60 | 0.180 | 0.243 | 304/316 | 33% |
60 | 0.160 | 0.263 | 304/316 | 39% |
70 | 0.140 | 0.223 | 304/316 | 38% |
70 | 0.120 | 0.243 | 304/316 | 45% |
80 | 0.140 | 0.178 | 304/316 | 31% |
80 | 0.120 | 0.198 | 304/316 | 39% |
90 | 0.110 | 0.172 | 304/316 | 37% |
90 | 0.100 | 0.182 | 304/316 | 42% |
100 | 0.110 | 0.144 | 304/316 | 32% |
100 | 0.100 | 0.154 | 304/316 | 37% |
120 | 0.080 | 0.132 | 304/316 | 39% |
150 | 0.063 | 0.106 | 304/316 | 39% |
165 | 0.060 | 0.094 | 304/316 | 37% |
180 | 0.053 | 0.088 | 304/316 | 39% |
200 | 0.053 | 0.074 | 304/316 | 34% |
AVAILABLE IN WIDTH: 0.50M-4.00M |
TWILL WEAVE | ||||
MESH(INCH) | WIRE DIA.(MM) | APERTURE/OPENING (MM) | MATERIAL(AISI) | OPEN AREA |
250 | 0.04 | 0.061 | 316 | 36% |
300 | 0.04 | 0.045 | 316 | 28% |
325 | 0.035 | 0.038 | 316 | 27% |
400 | 0.03 | 0.034 | 316 | 28% |
450 | 0.028 | 0.028 | 316 | 25% |
500 | 0.025 | 0.026 | 316 | 26% |
AVAILABLE IN WIDTH: 0.50M-1.50M |
DUTCH WEAVE | ||
MESH(INCH) | WIRE DIA.(MM) | MATERIAL(AISI) |
12×64 | 0.58×0.40 | 304/316 |
14×88 | 0.50×0.33 | 304/316 |
24×110 | 0.35×0.25 | 304/316 |
30×150 | 0.23×0.18 | 304/316 |
50×250 | 0.14×0.11 | 304/316 |
80×700 | 0.10×0.08 | 304/316 |
165×800 | 0.071×0.04 | 304/316 |
165×1400 | 0.06×0.04 | 304/316 |
200×1800 | 0.05×0.032 | 304/316 |
325×2300 | 0.035×0.025 | 304/316 |
400×2800 | 0.030×0.020 | 304/316 |
AVAILABLE IN WIDTH: 0.50M-1.50M |
