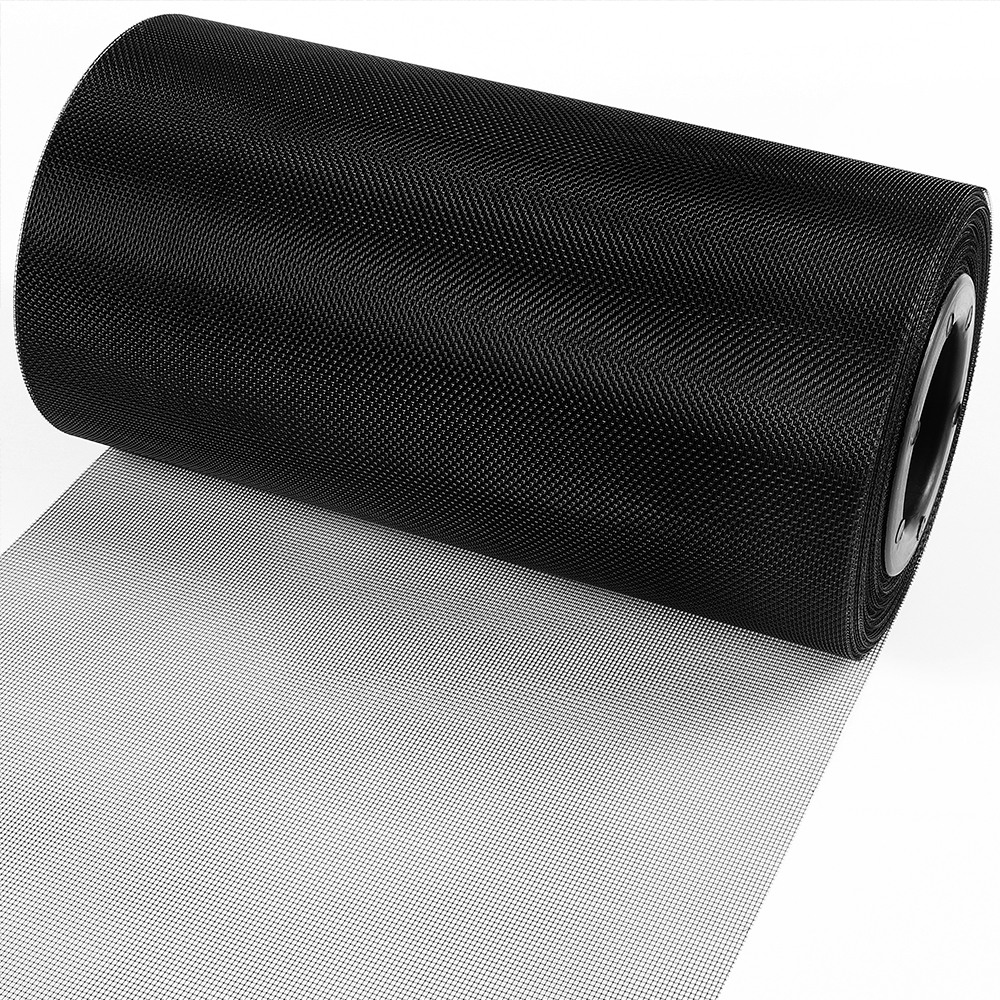

Epoxy Coated Wire Mesh made by varous metal wires with electrostatic powder spraying.Our company developed 4 production lines ,significant achievemental have been made in both quality and environmental protection.
Material: Low carbon steel wire,stainless steel wire,aluminium wire and other wires.
1) Mainly used for hydraulic/air filter support layer, it is the main part of the filter element.
The forming is through electrostatic spraying dedicate the epoxy mesh resin powder adsorption on different metal woven mesh surface, through a certain temperature and time, the epoxy resin powder melting, covering the surface of the wire mesh to form a dense protective coating. Usually the substrate materials are stainless steel mesh, aluminum alloy mesh, carbon steel mesh. Epoxy resin powder can be customized according to customer requirements (including specific colors)
2) Characteristic
Lightweight , resilient,uniform aperture,acid and alkali resistant,corrosion preventive,high temperature resistance ,environmental protection,etc.
3）Product advantages
1. Oil corrosion resistance: it can be detected by various brands of hydraulic oil media around the world at different temperatures and time, and the coating surface has no change. It is suitable for special hydraulic filter products under high temperature and high pressure.
2. Corrosion resistance: according to ASTM B117-09 salt spray test standard, continuous test 96H coating surface has no change, suitable for the use of air filters in harsh environment;
3. Strong adhesion: it can pass H grade pencil test, 1kg/50cm impact test, grid test, anti-fatigue detection;
4. High bending resistance: it can be folded by steel rod with curvature radius of 1mm, without cracks on the surface;
5. After cutting, keep the edge wire not falling off after cutting, and the adhesive force of the coating interweaving point can reach 0.7kg
4）Application

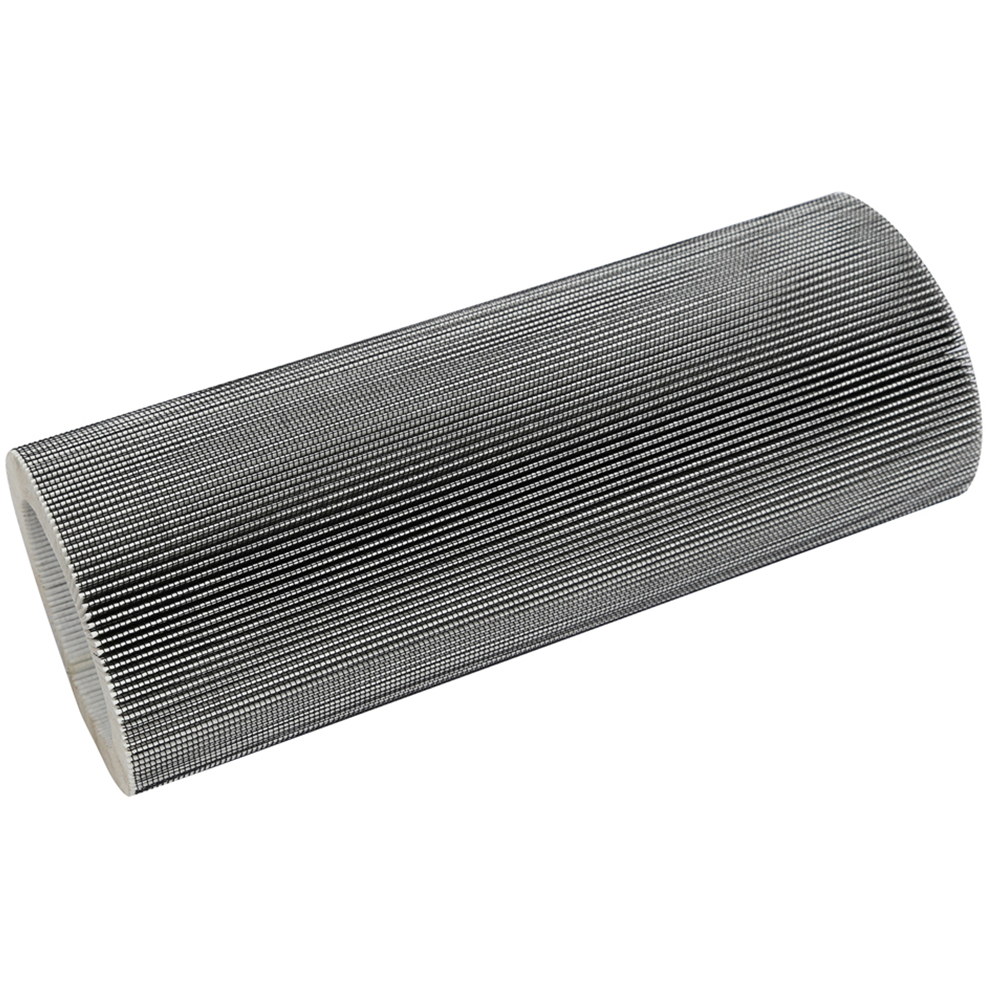

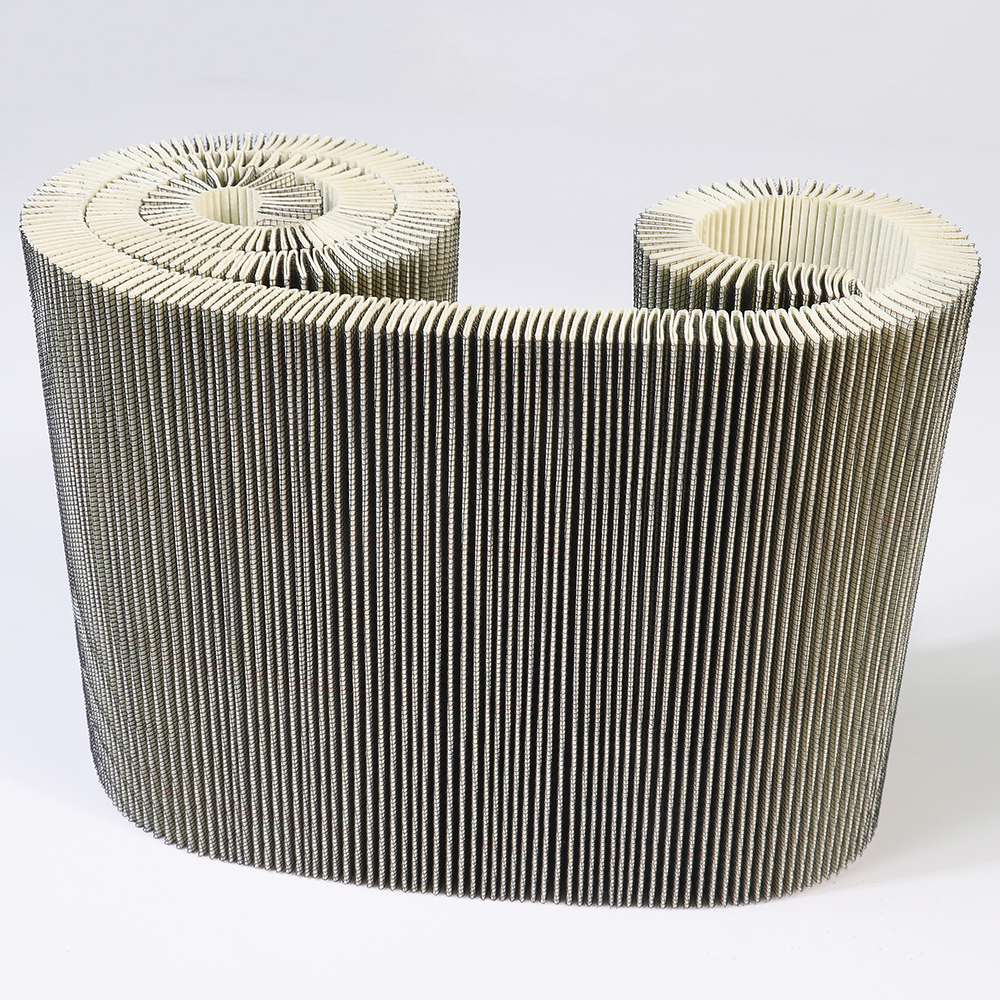

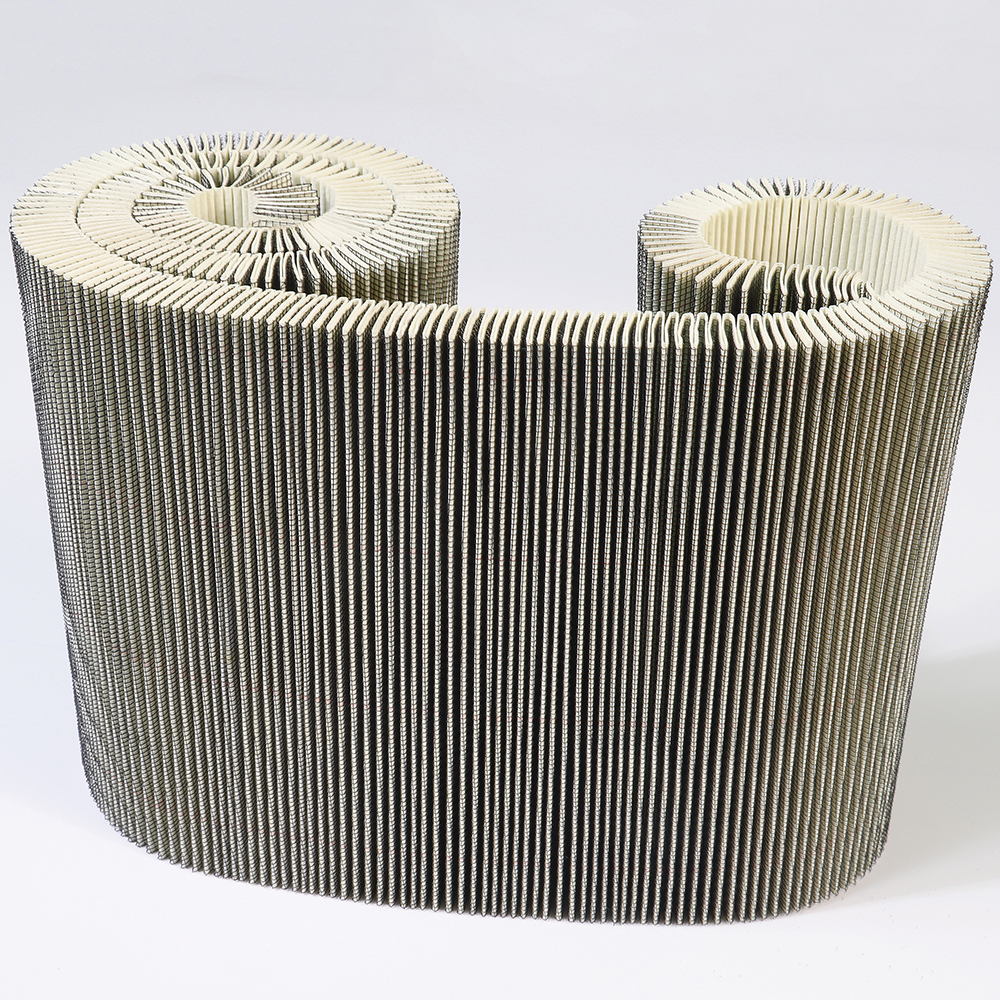

Mainly used as support layer of hydraulic and air filters ,also used for window screen and protective screen.
5）Color
black ,grey or customized specification.
Epoxy Coated Wire Mesh made by varous metal wires with electrostatic powder spraying.Our company developed 4 production lines ,significant achievemental have been made in both quality and environmental protection.
Material: Low carbon steel wire,stainless steel wire,aluminium wire and other wires.
1) Mainly used for hydraulic/air filter support layer, it is the main part of the filter element.
The forming is through electrostatic spraying dedicate the epoxy mesh resin powder adsorption on different metal woven mesh surface, through a certain temperature and time, the epoxy resin powder melting, covering the surface of the wire mesh to form a dense protective coating. Usually the substrate materials are stainless steel mesh, aluminum alloy mesh, carbon steel mesh. Epoxy resin powder can be customized according to customer requirements (including specific colors)
2) Characteristic
Lightweight , resilient,uniform aperture,acid and alkali resistant,corrosion preventive,high temperature resistance ,environmental protection,etc.
3）Product advantages
1. Oil corrosion resistance: it can be detected by various brands of hydraulic oil media around the world at different temperatures and time, and the coating surface has no change. It is suitable for special hydraulic filter products under high temperature and high pressure.
2. Corrosion resistance: according to ASTM B117-09 salt spray test standard, continuous test 96H coating surface has no change, suitable for the use of air filters in harsh environment;
3. Strong adhesion: it can pass H grade pencil test, 1kg/50cm impact test, grid test, anti-fatigue detection;
4. High bending resistance: it can be folded by steel rod with curvature radius of 1mm, without cracks on the surface;
5. After cutting, keep the edge wire not falling off after cutting, and the adhesive force of the coating interweaving point can reach 0.7kg
4）Application
Mainly used as support layer of hydraulic and air filters ,also used for window screen and protective screen.
5）Color
black ,grey or customized specification.

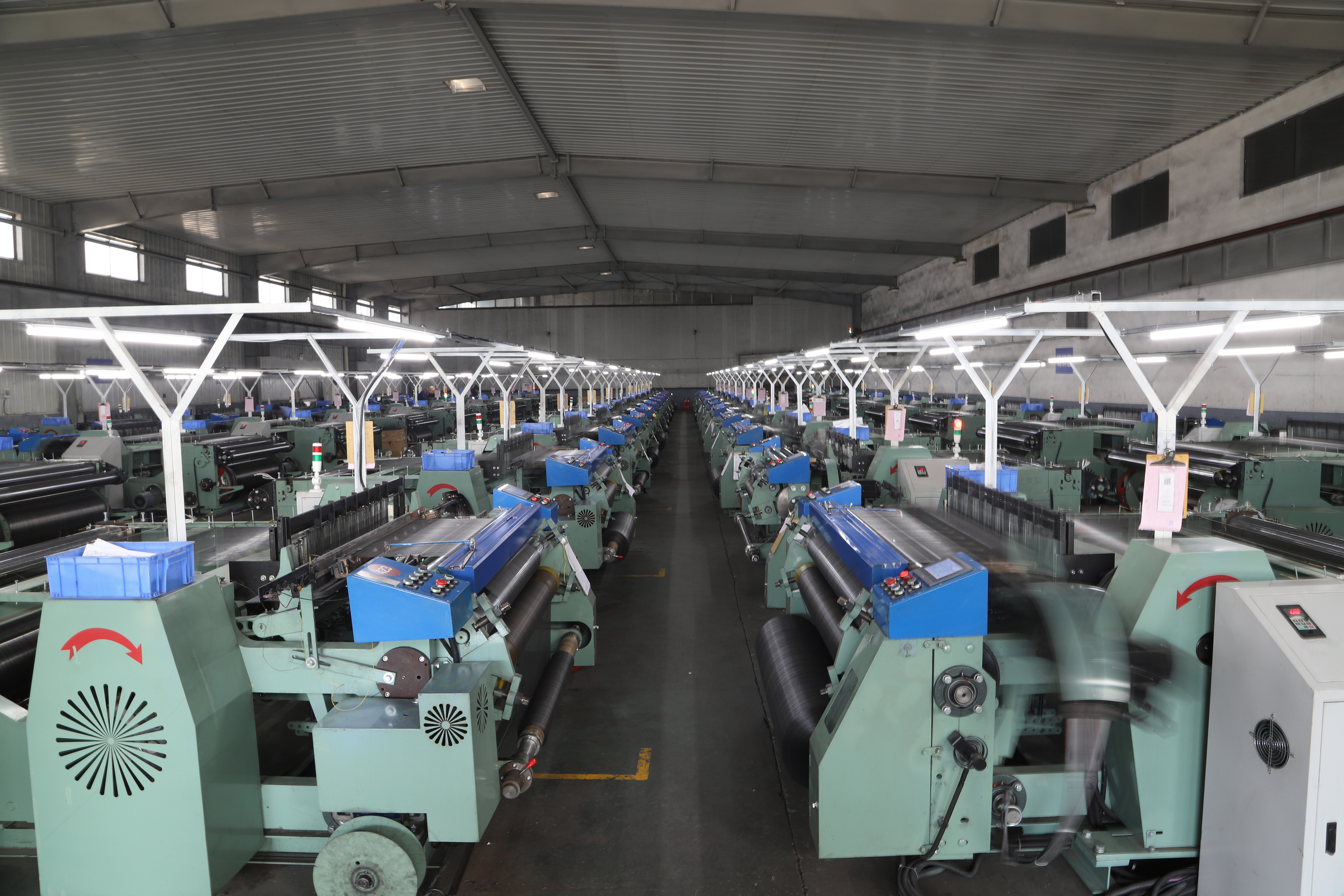

Weaving Workshop

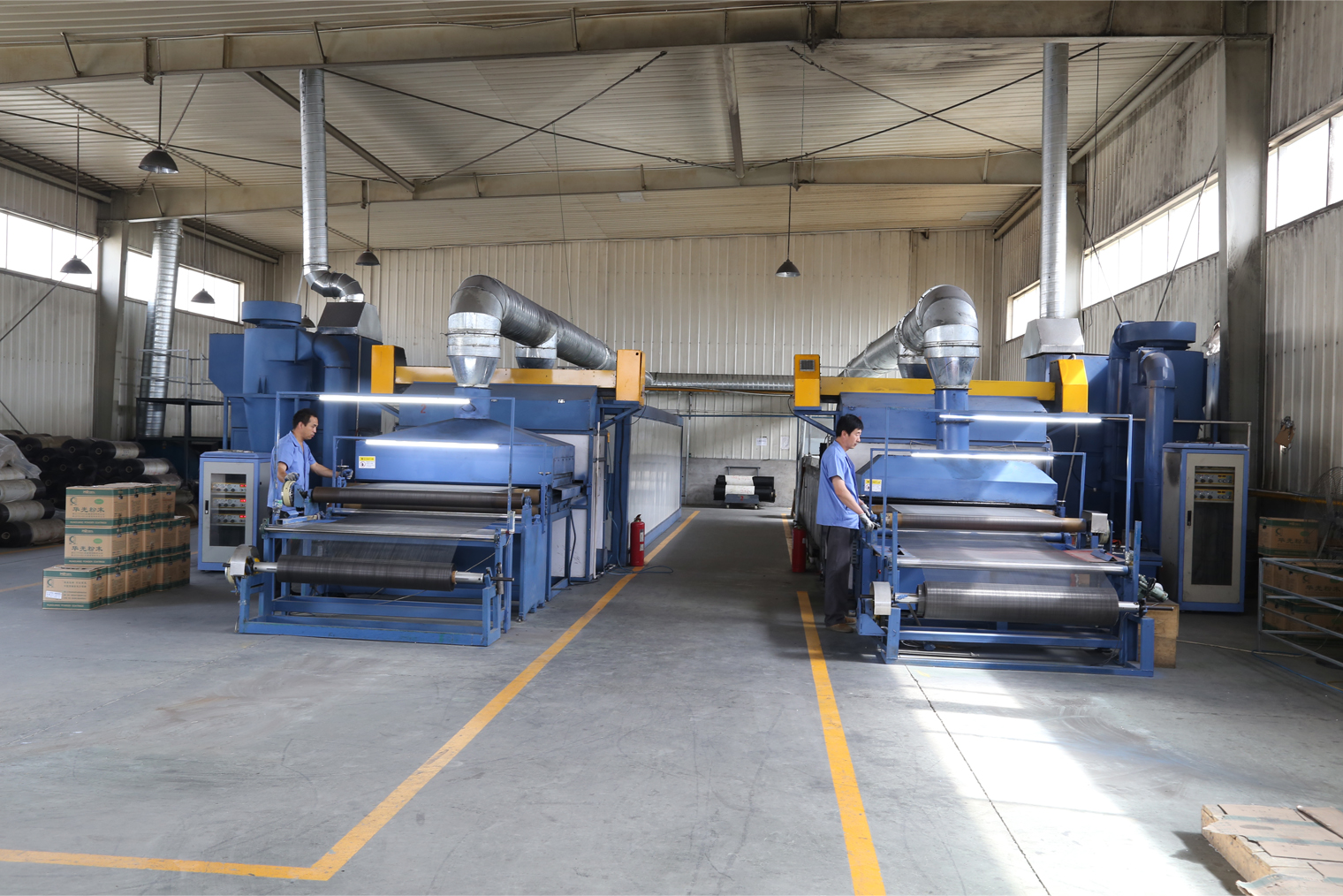

Powder Coating Worshop

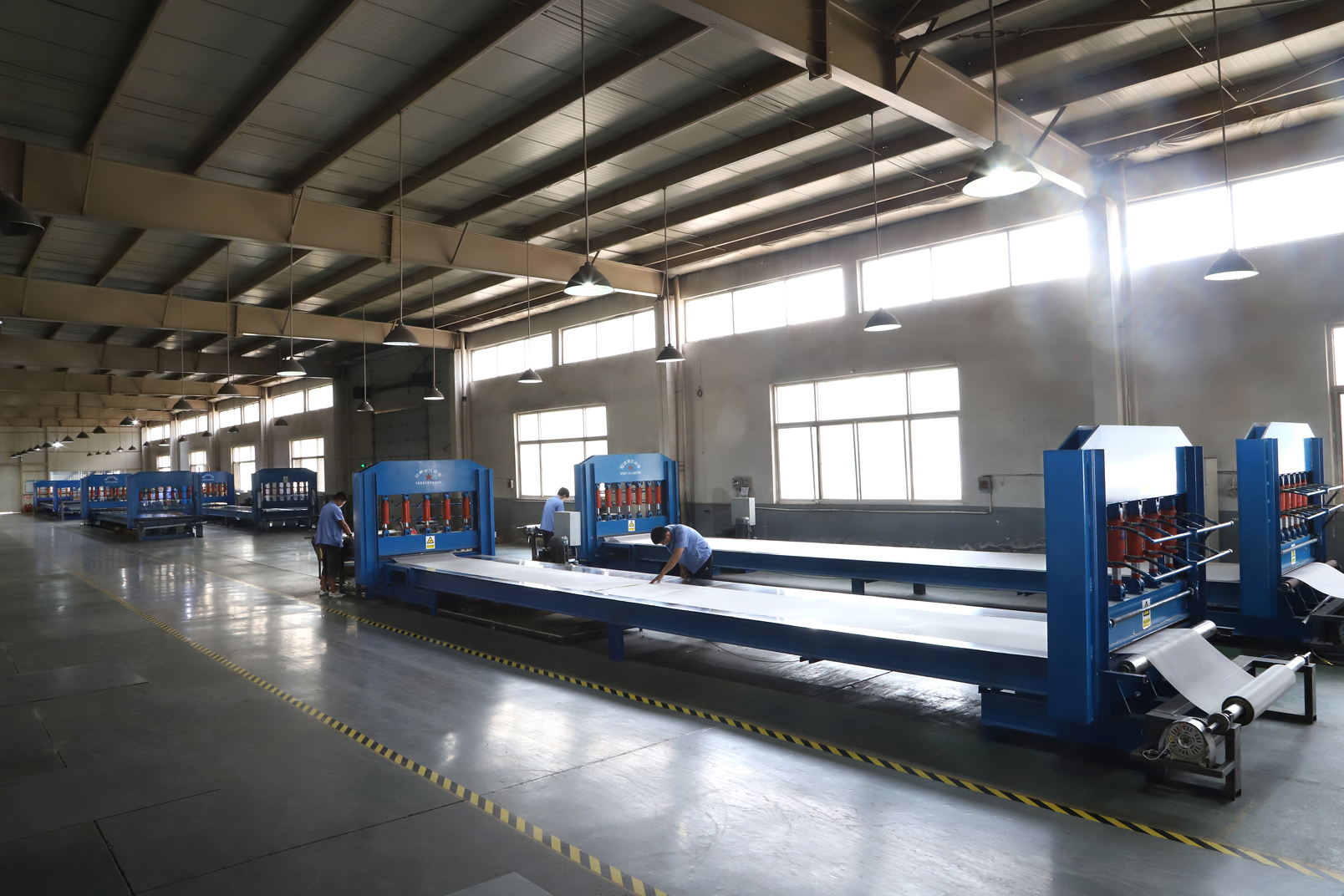

Wire Mesh Flattening
Inspect The Aperture And Wire Dia.

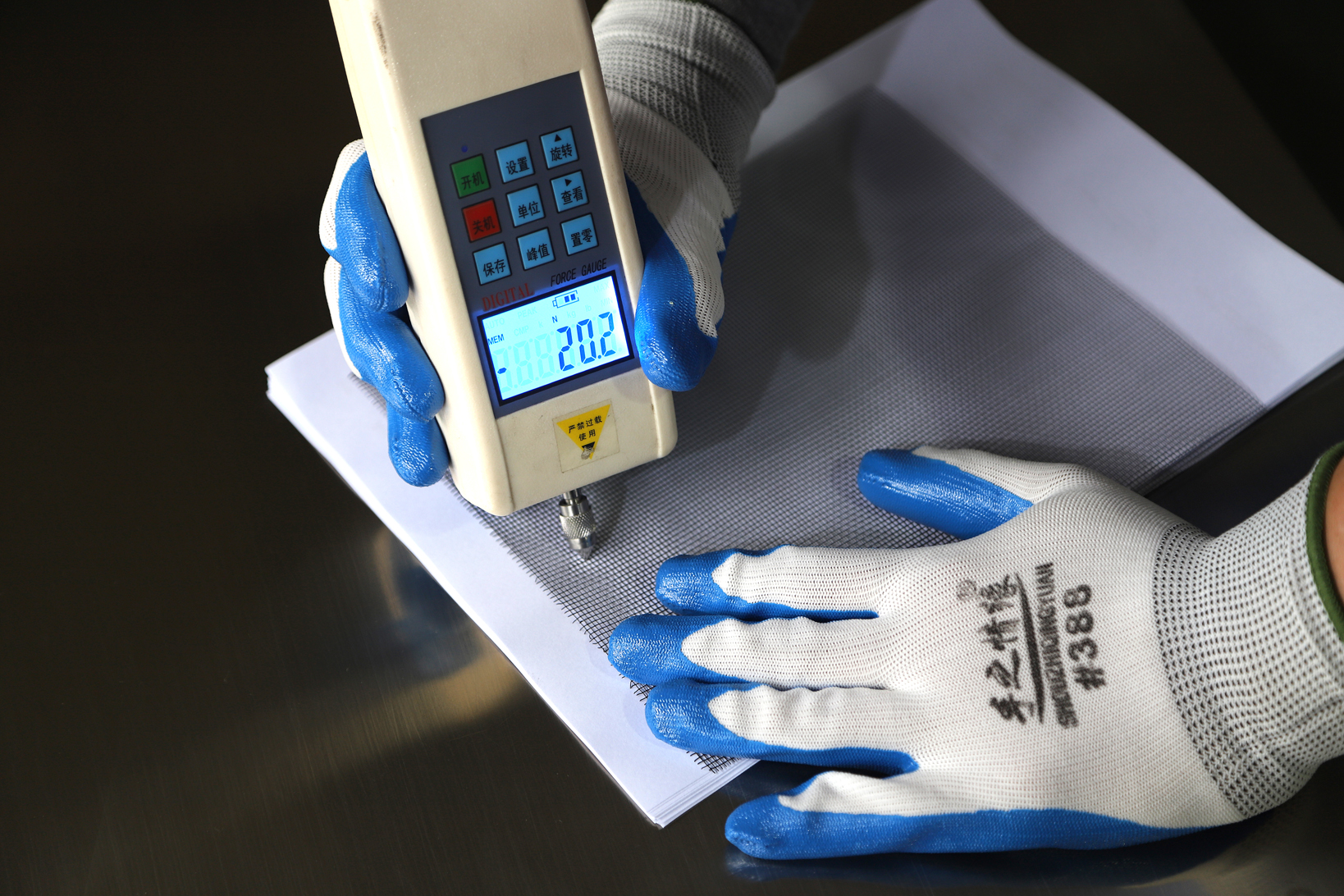

Stripping Test
Oil Immerson Test

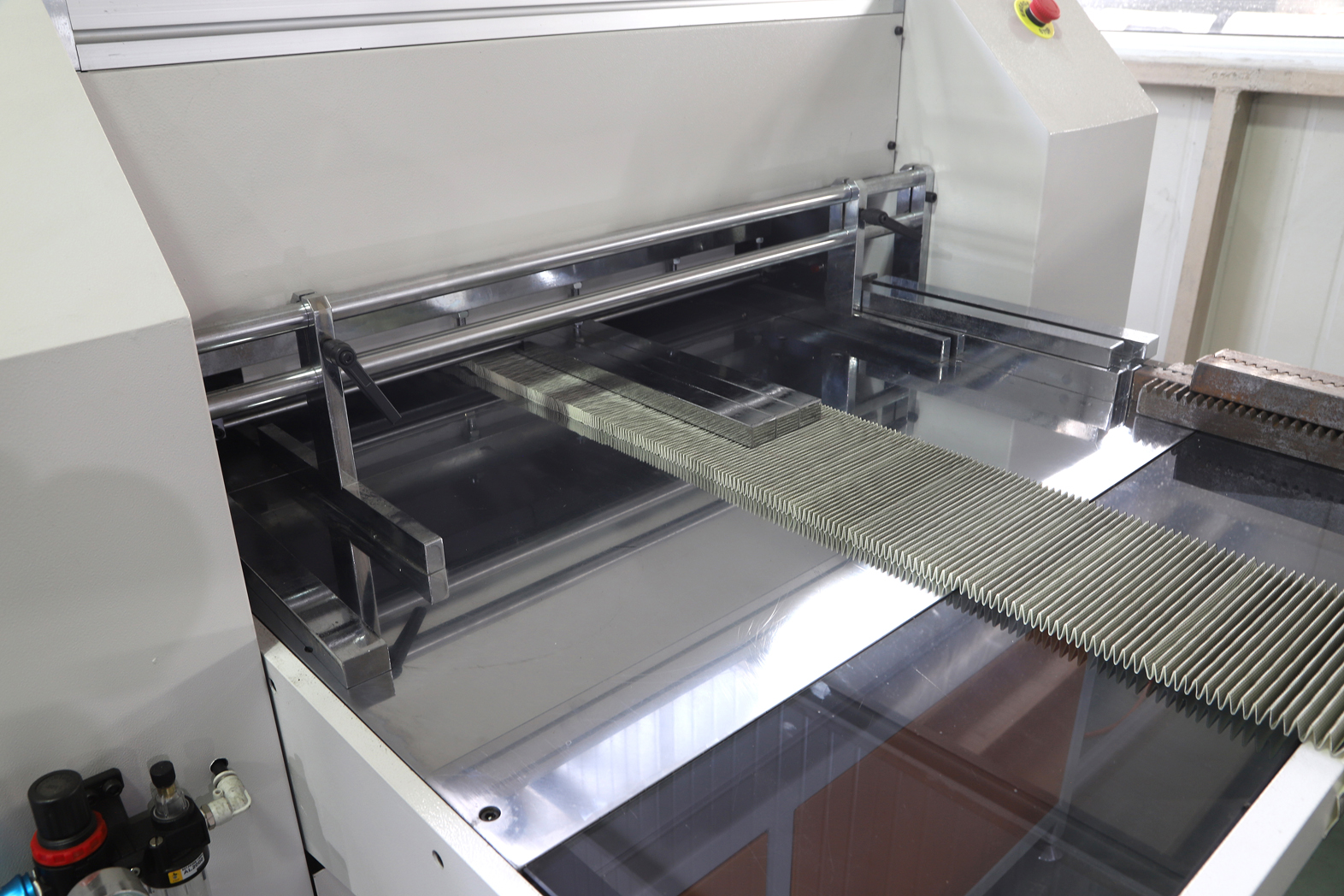

High-Termperature Pleating Test

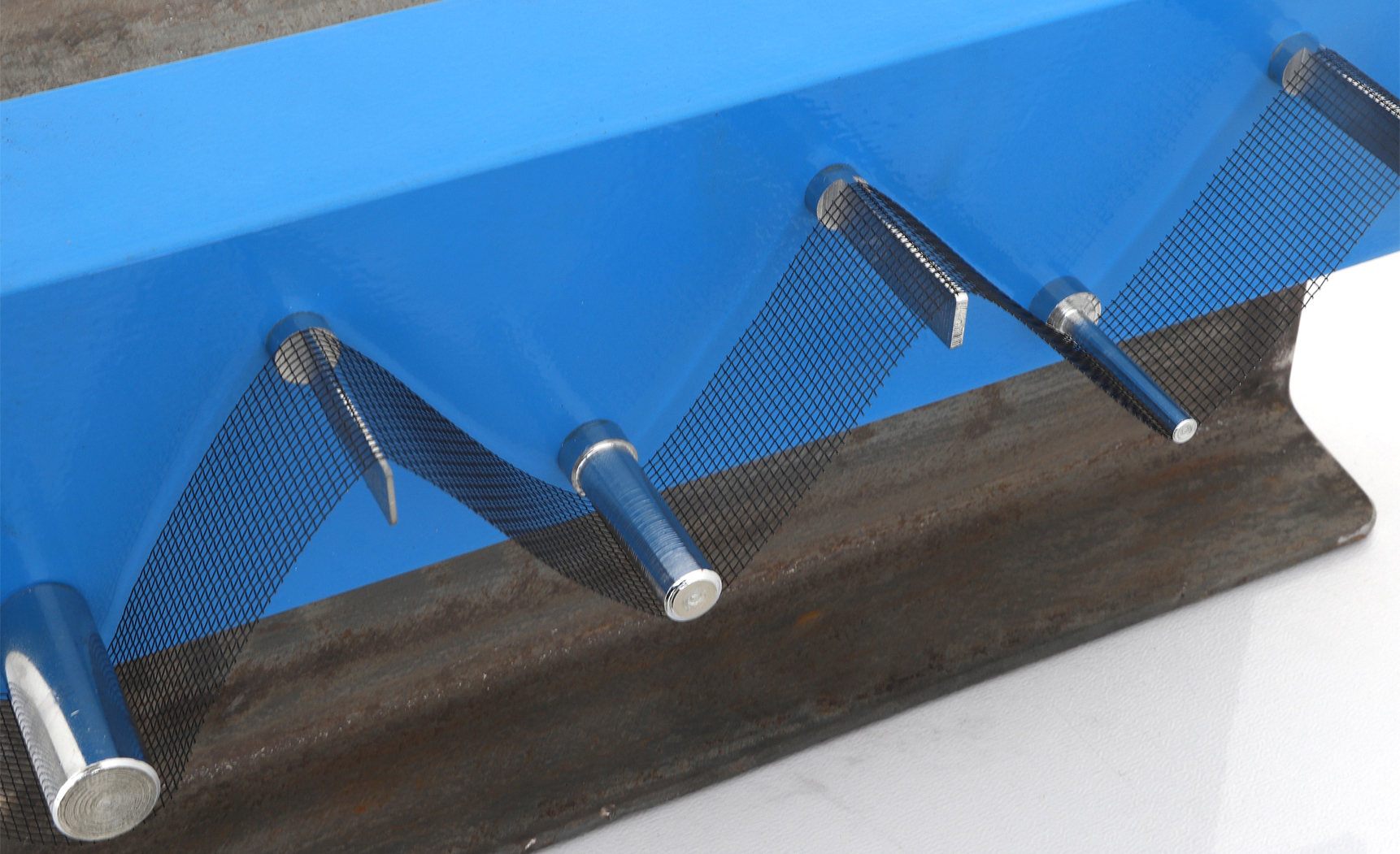

Elasticity Test

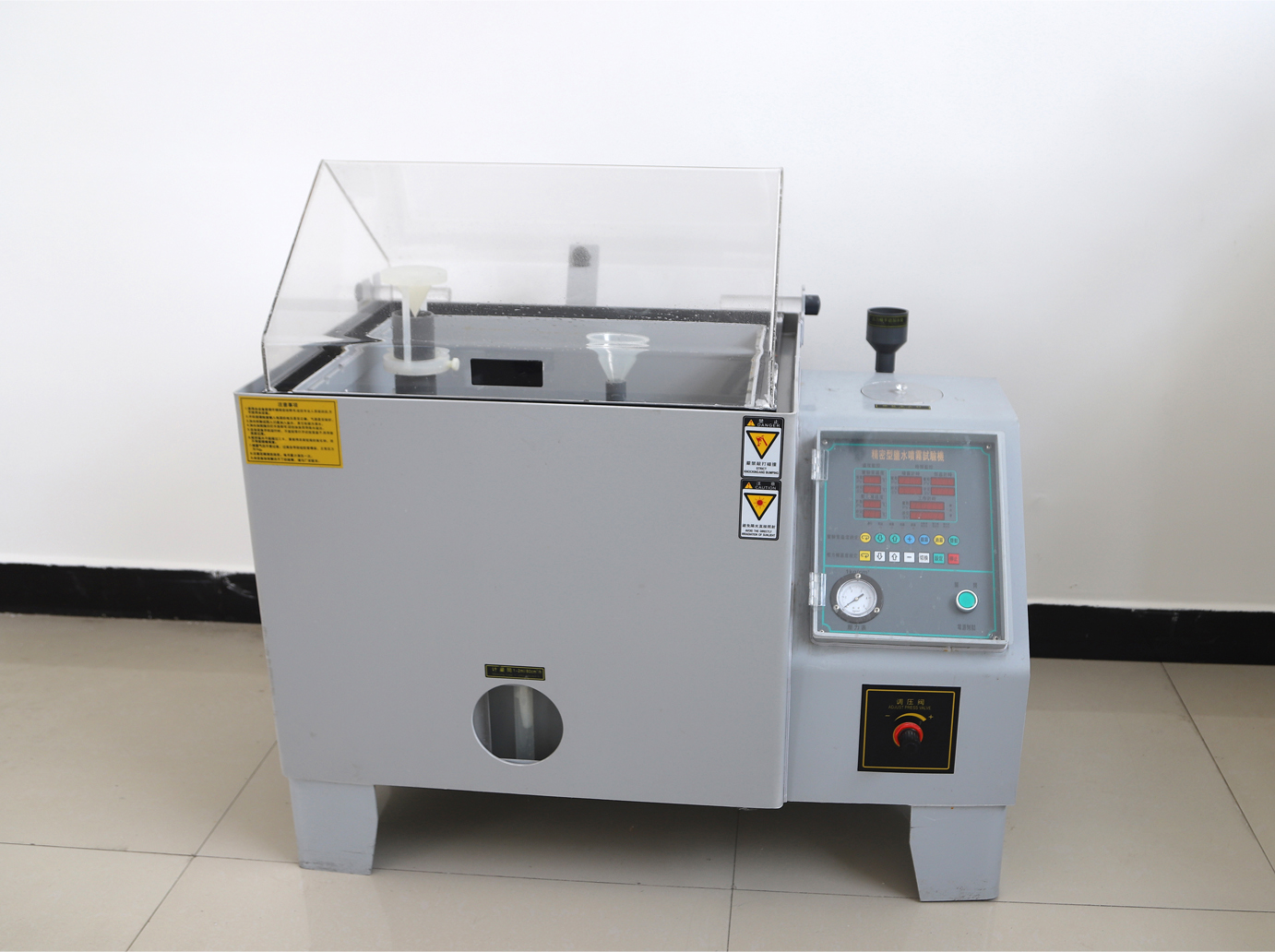

Salt Spray Life Test

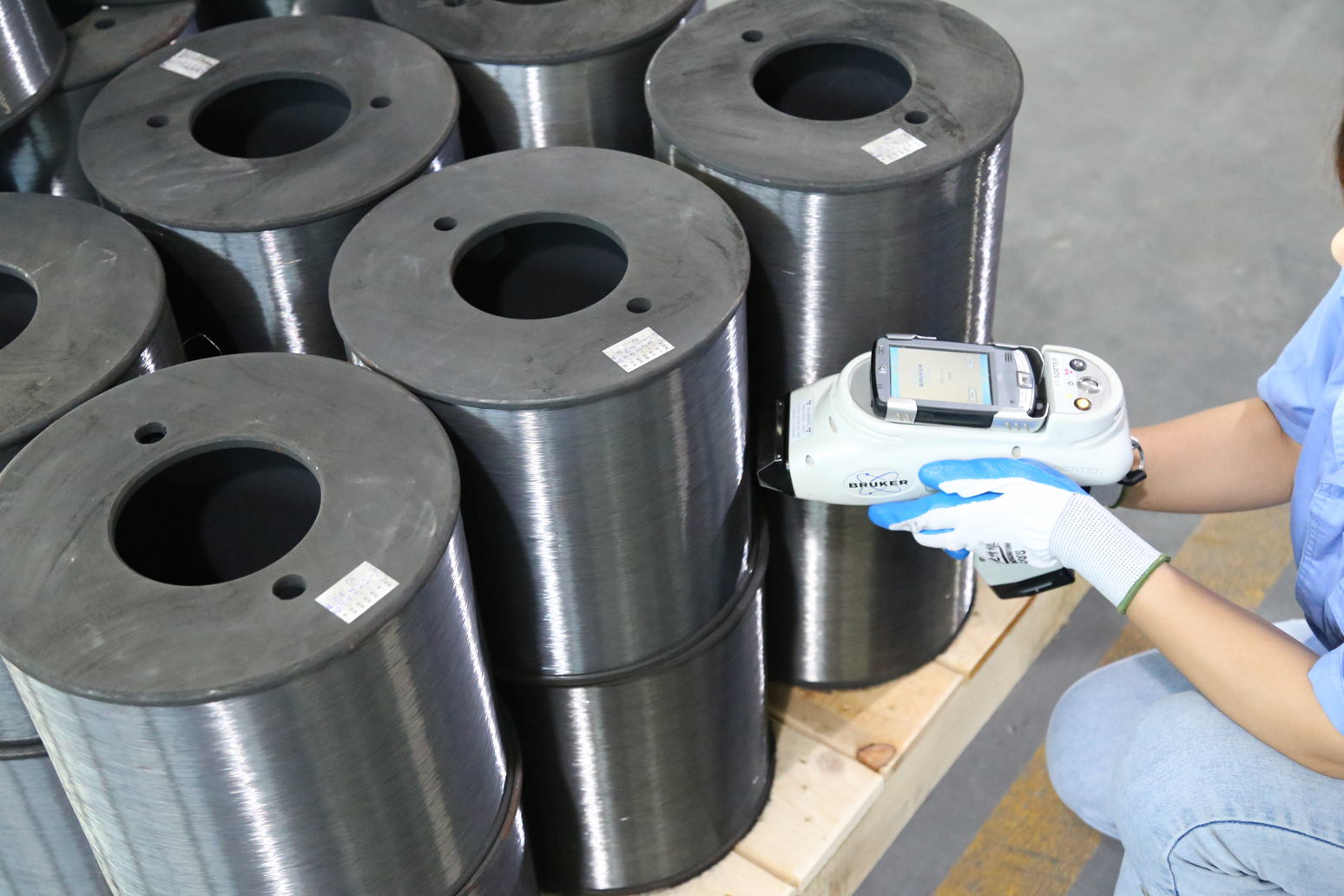

Analyze The Raw Material

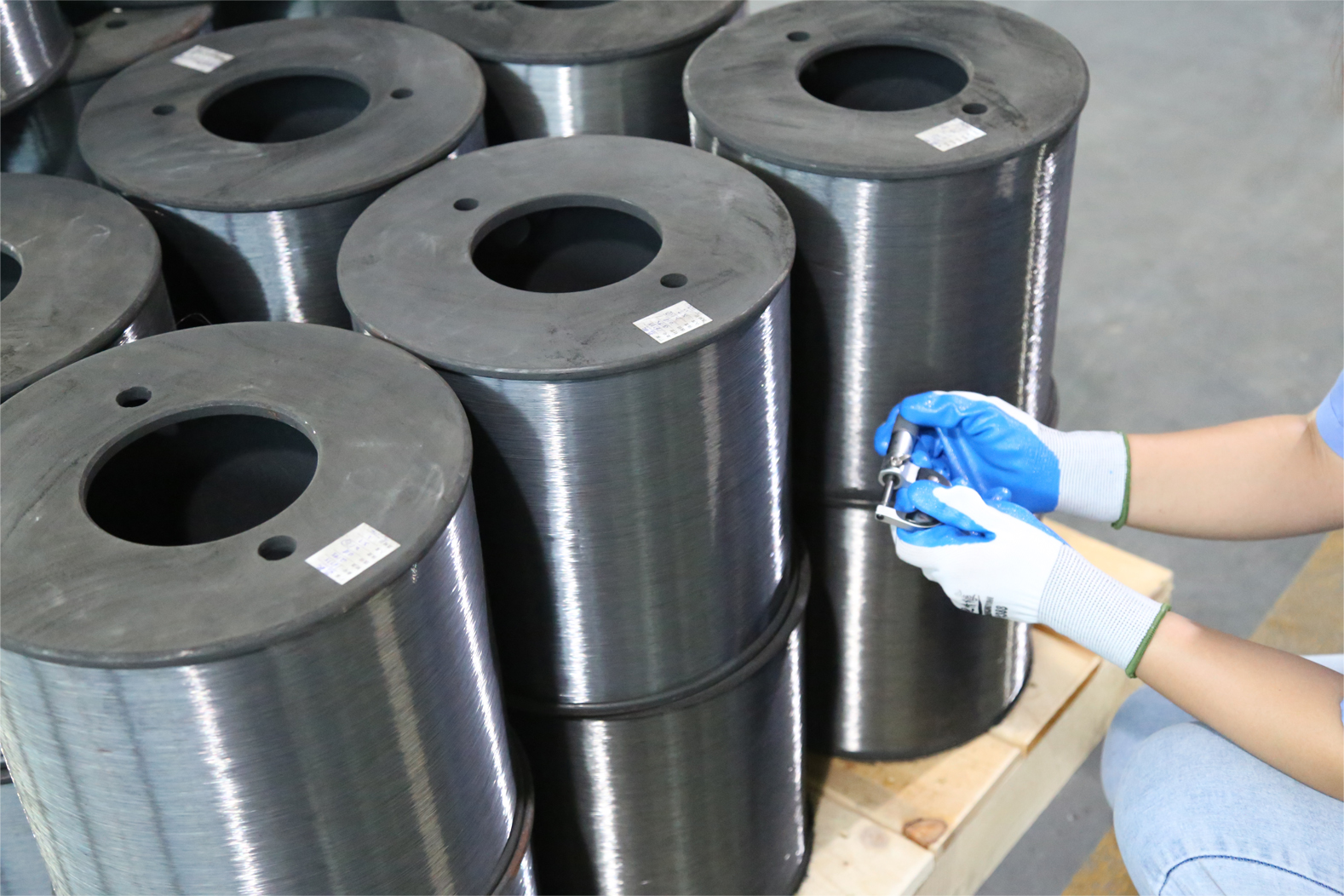

Inspect The Wire Dia.

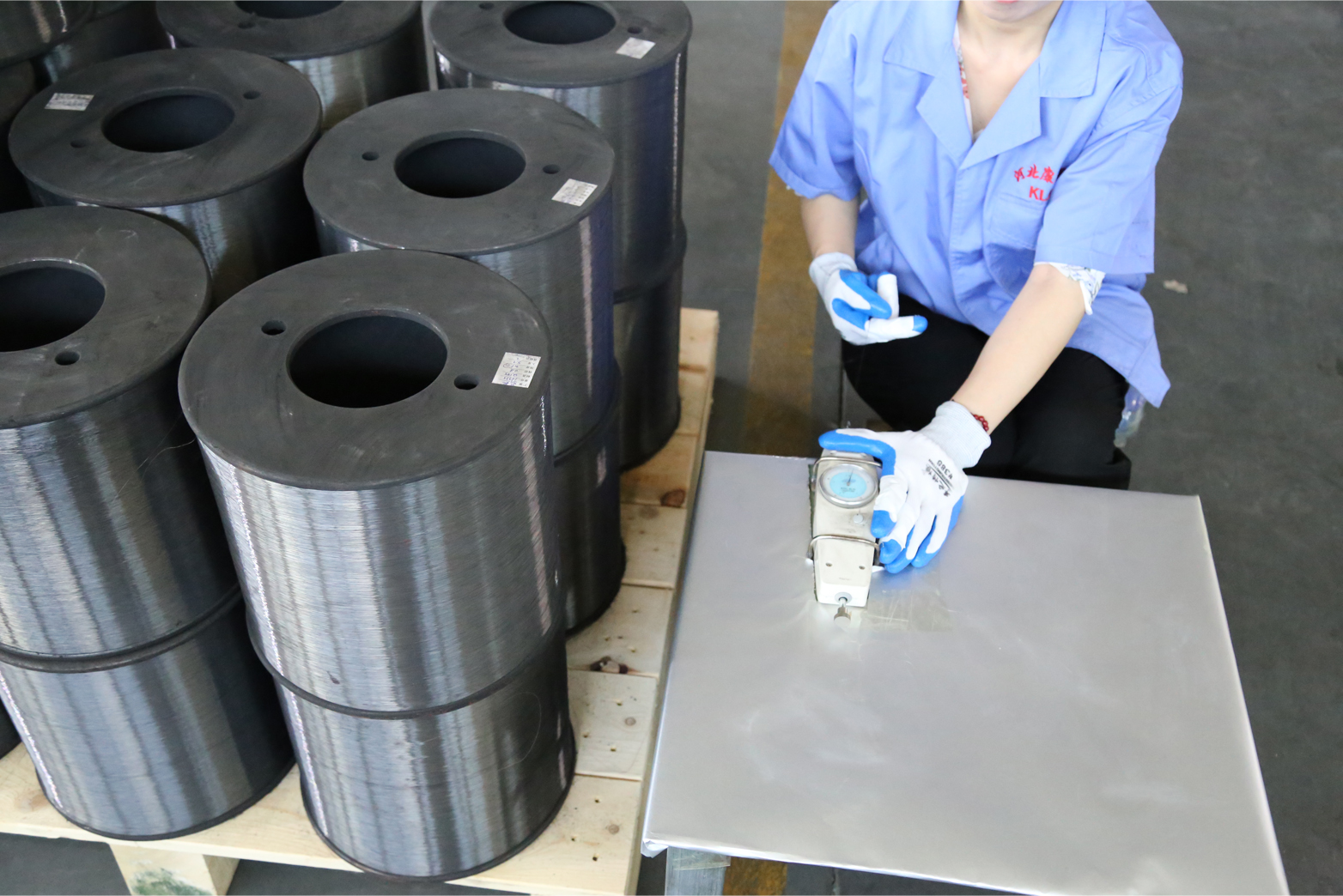

Inspect The Tensile Strength

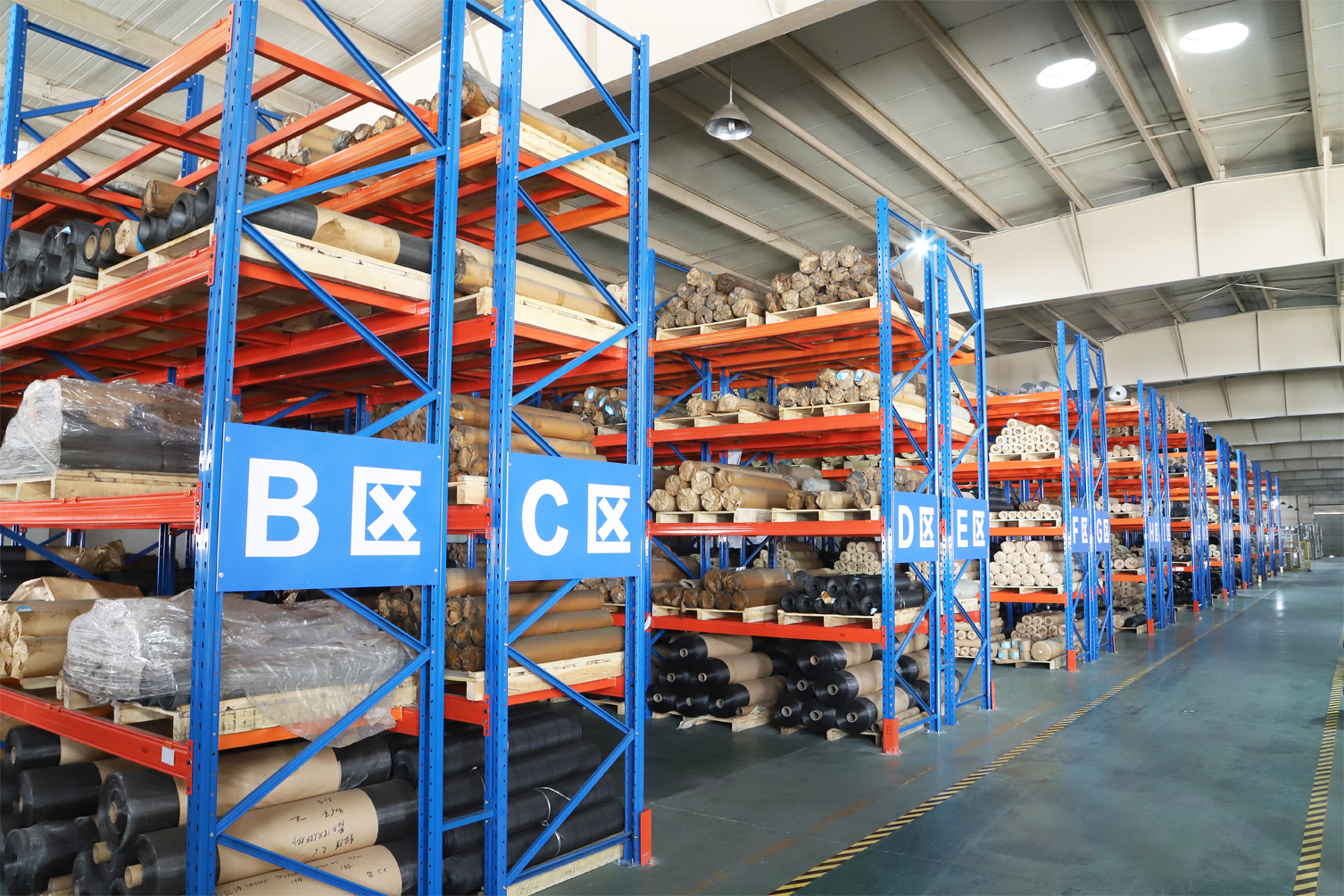

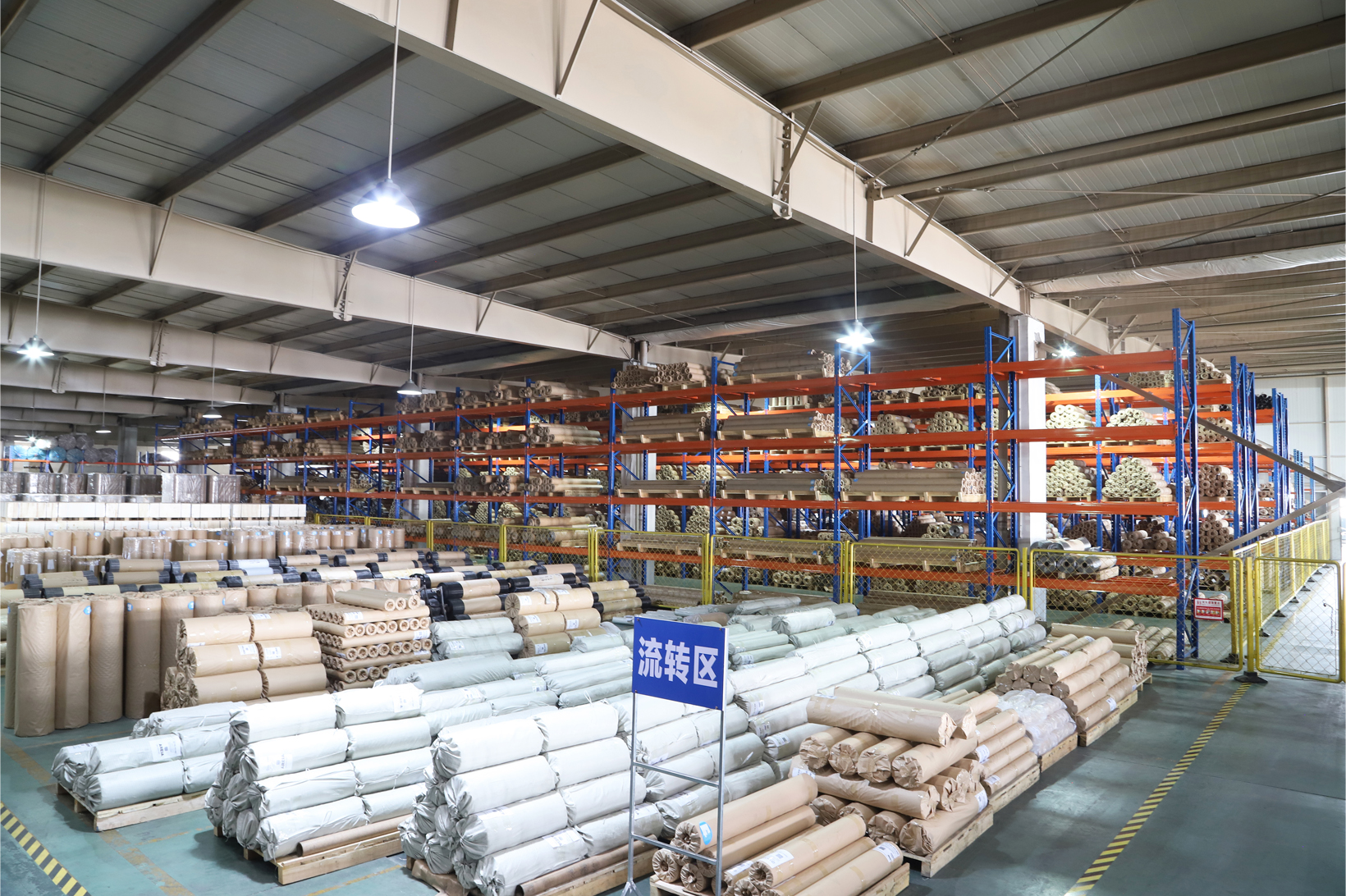

Warehouse
Warehouse

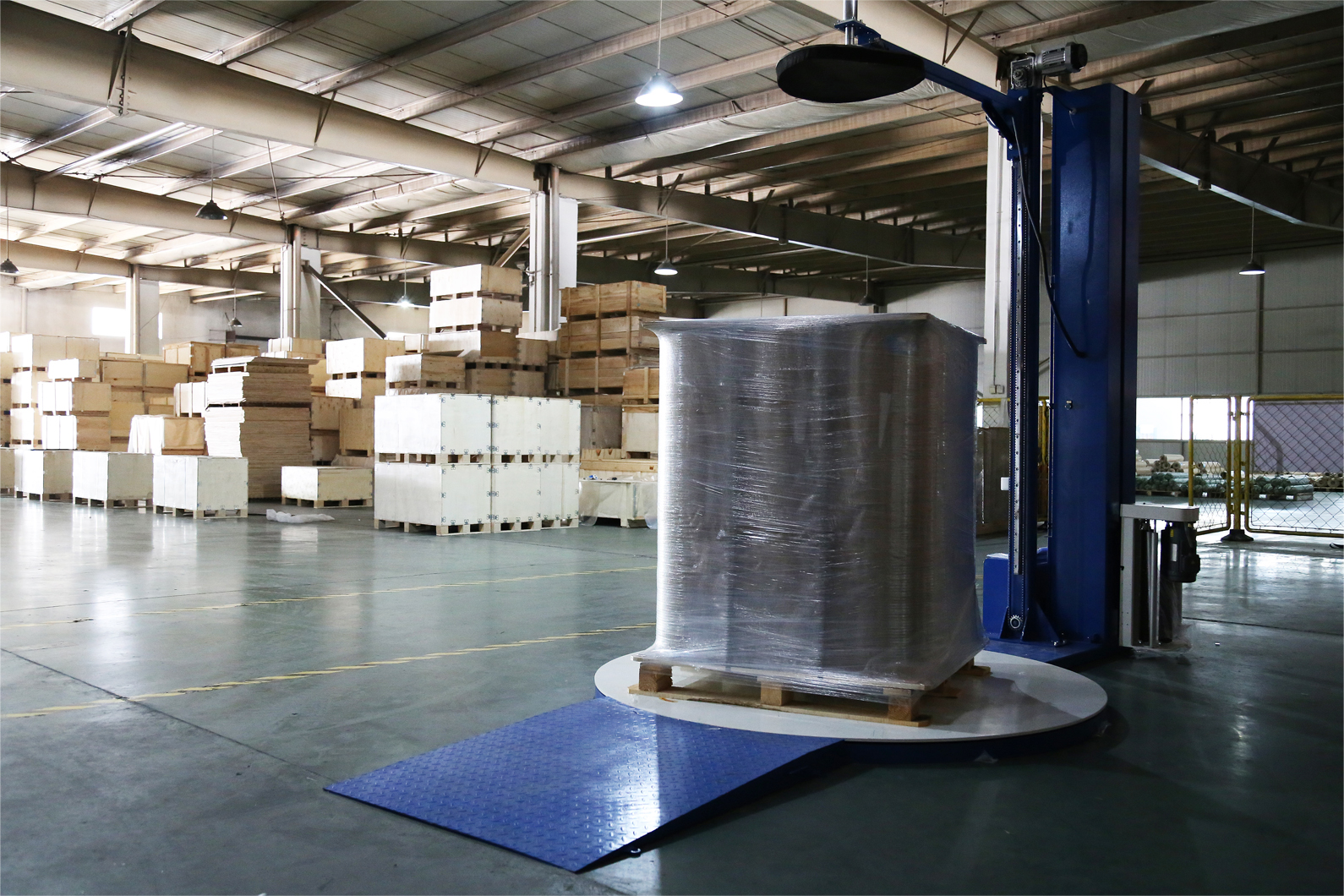

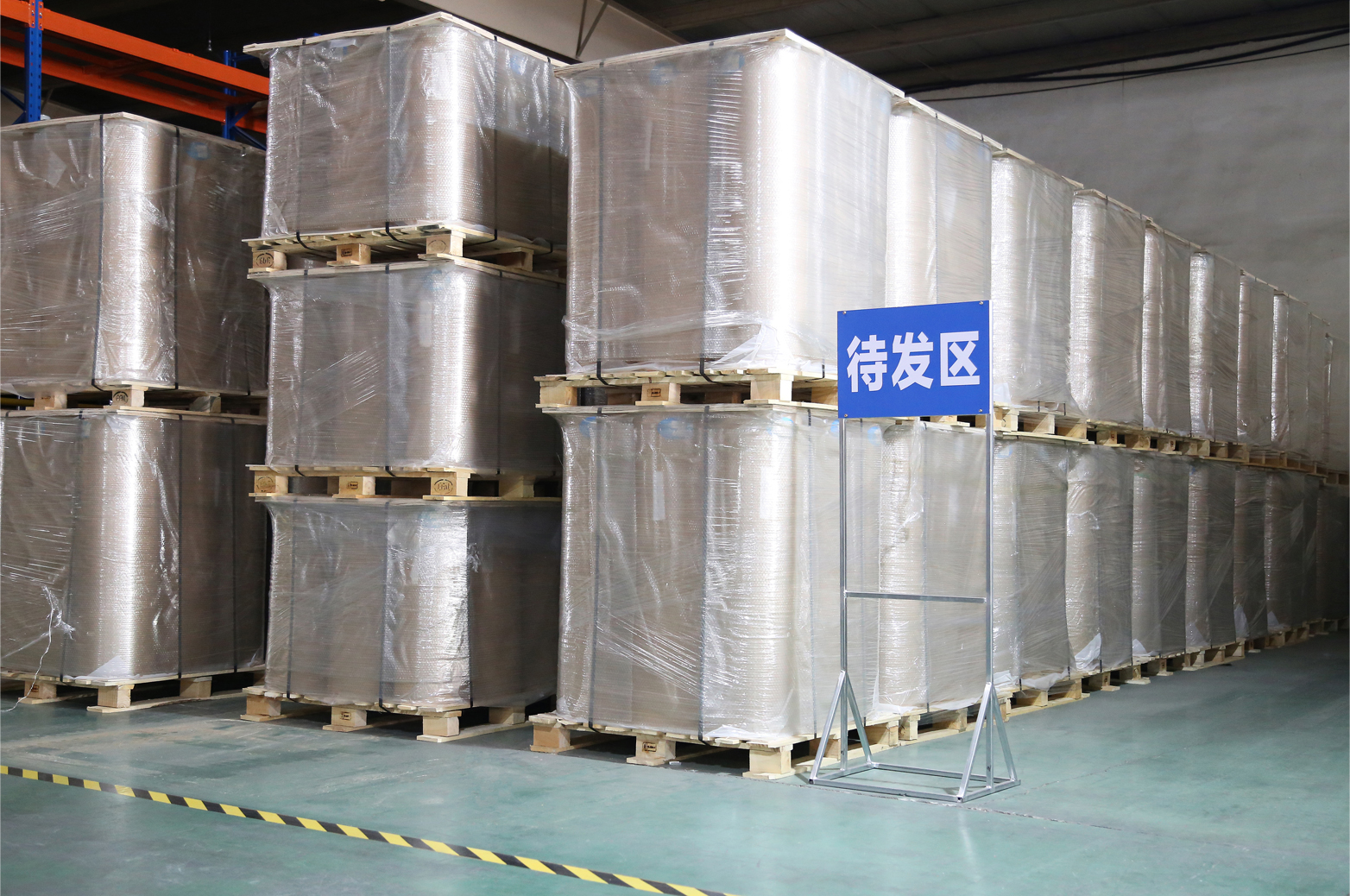

Packing
Packing
